Laser Core Positioning System

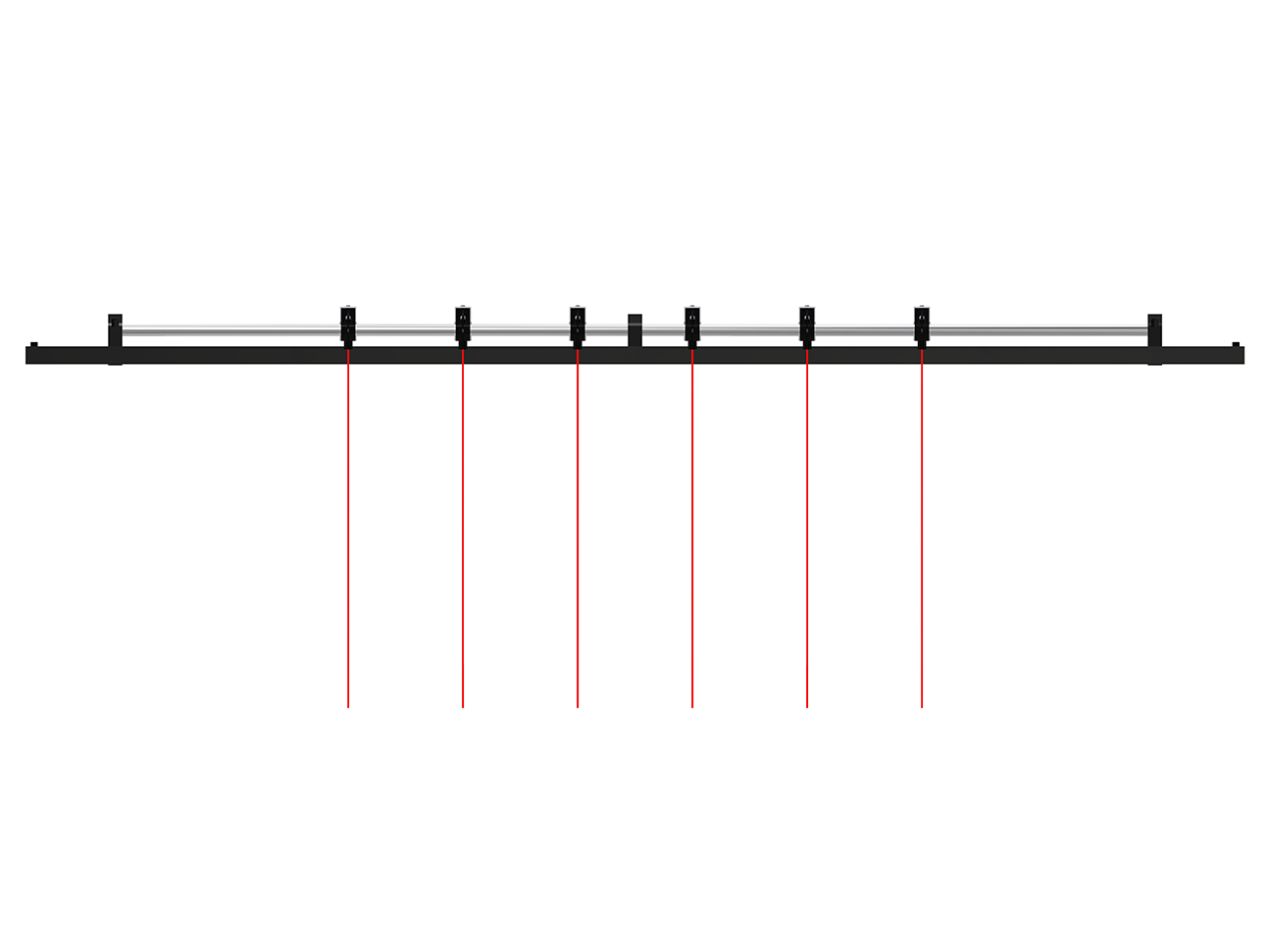

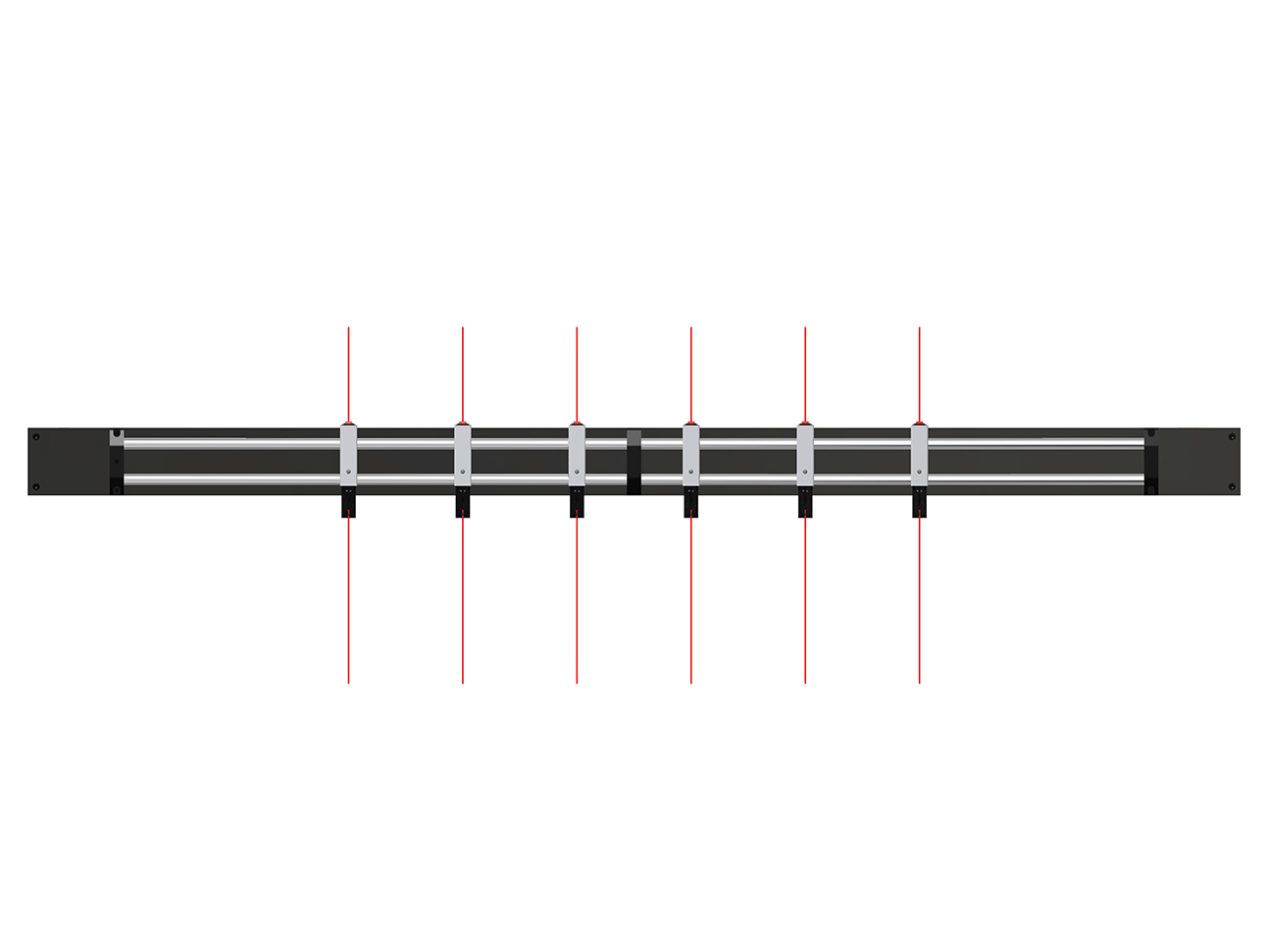

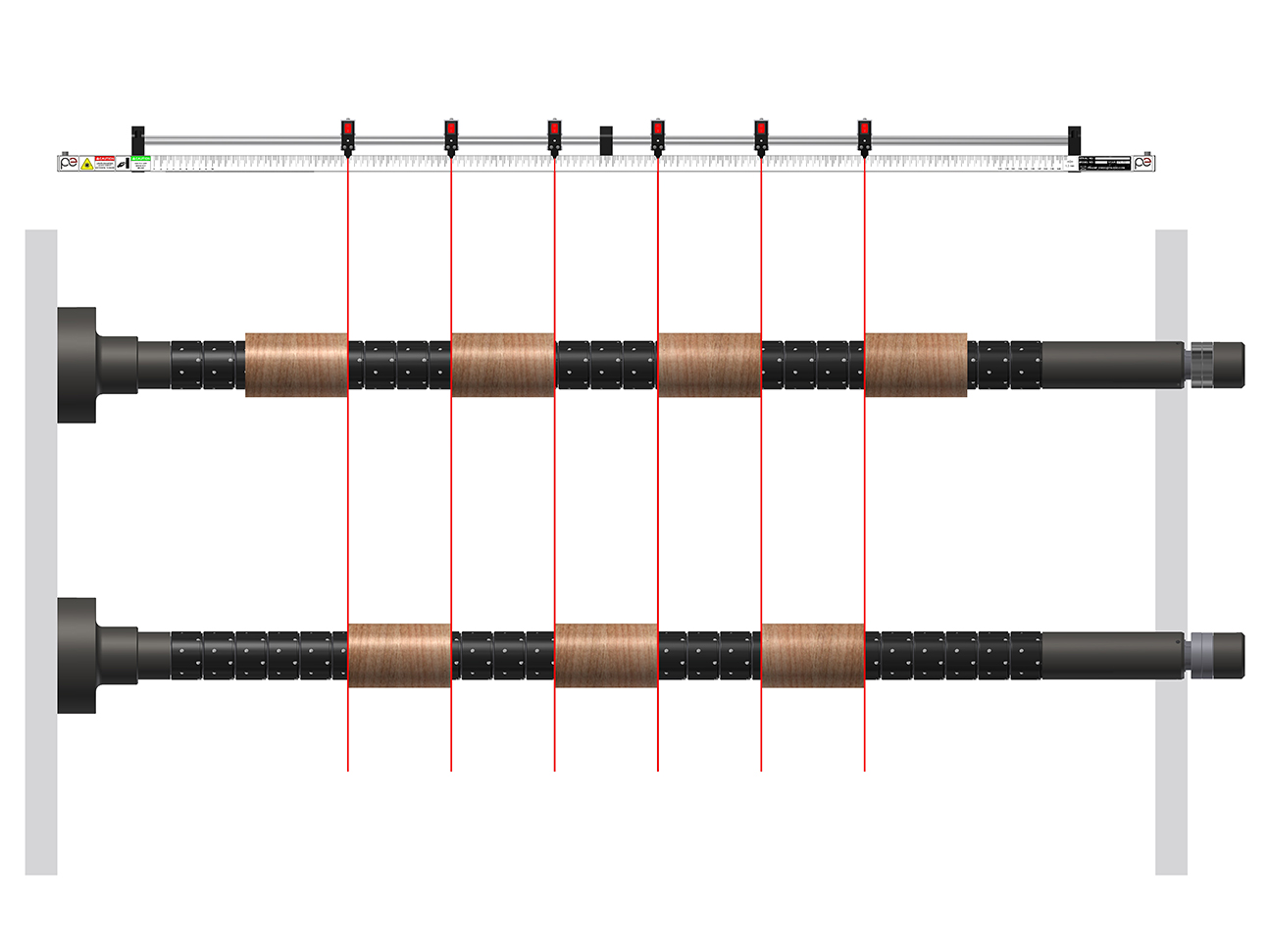

VISION Laser Core Positioning System is designed to fit onto a range of slitting and winding equipment. Projecting a laser line around the shaft to indicate the required position of the edge of the core on the slitter / winder. It is ideal solution for to speed up the process and assure a perfectly aligned edge each and every time. Installing a VISION core positioning system is simple and will greatly reduce job set up time while increasingly accuracy.

Features:-

• Fast core positioning. Eliminates the time taken by the operator to measure and mark or apply tape to rewind shafts to position the cores.
• Fast and simple to fit. The VISION Laser core positioning system has been designed to be very easy to install on almost any slitter and while the majority of our customers use their own engineers to install the system.
• Flexible system. Designed to fit a wide range of slitting and rewinding machines.
• Button at the back to switch off the laser when not in use.

Benefits:-

• Stops “hammering” cores into position. On start up, the operators often hammer the cores into the correct position. This can damage both the cores and the core chucks. The start of these rolls will also be misaligned.
• Eliminates pen marks and adhesive tape on rewind shaft. These marks allow the operator to position the next set of cores correctly. However, shafts end up covered in marks making it confusing to tell which was the correct one, often leading to incorrect positioning of the core. If the machine is fitted with differential shafts using compressible friction washers, these marks become inaccurate if the amount of compression changes.

Note:- We do not provide the support arms that hold the laser core alignment system above the slitter rewind shafts, but can fabricate these for you for a small additional cost.
